Fiber Optic PLC Splitter 2x32 Splice Pigtailed ABS Module 2.0mm LC / APC Singlemode
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
ABS Cassette PLC Splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(Outdoor Fiber Distribution Box) or network cabinets.
OMC ‘s bare fiber PLC splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
Specification
| Parameter | Unit | Specification (P Grade) |
| Operation Wavelength | nm | 1260~1650 |
| Channel Number | | 1X2 | 1x3 | 1X4 | 1x6 | 1X8 | 1x12 | 1X16 | 1x24 | 1X32 | 1X64 | 1x128 |
| Insertion Loss(Max) | dB | 4.3 | 6.2 | 7.2 | 9.8 | 10.5 | 12.5 | 13.6 | 16.5 | 17.2 | 21.0 | 25.5 |
| Uniformity (Max.) | dB | 0.5 | 0.6 | 0. 6 | 0.8 | 1.0 | 1.0 | 1.4 | 1.5 | 1.6 | 2.0 | 2.5 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 |
| Return Loss | dB | ≥55 |
| Directivity | dB | ≥55 |
Features
- Optional connector: SC/LC/FC/ST, Optional end face: APC/UPC
- TU G.657A1 for fiber input/output
- Compact design, suitable for installation in optical equipments
- High reliability and stability, Telecordia GR-1221/1209 compliant
- Operating bandwidth: 1260 - 1650nm
- Wide Operating Temperature: -40 - 85°C, support industry standard applications
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 100×80×10 | 100×80×10 | 100×80×10 | 120x80x18 | 120x80x18 | 140×114×18 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 100×80×10 | 100×80×10 | 100×80×10 | 120x80x18 | 120x80x18 | 140×114×18 |
Cable Information
| Fiber type | G657A1 |
| Loose Tube | 900um,1.6mm,1.8mm,2.0mm |
| Connector | SC, LC,FC,ST,……. |
| 2xN Splitter | Only Single Chip |
Application
- Optical Signal Distribution
- Data CommunicationsLan and CATV System
- FTTH Network/ Deployment
- Measuring System and Laser System
- DWDM and CWDM Systems
Product Highlights
Blockless PLC Splitter
1.2X32 PLC splitter, uniform distribution of optical signal
2.Small size, with the splitter type of mini module, LC/APC connector
3.Ideal for EPON, GPON, FTTH/FTTX network
Perfect Details of 2x32 Blockless PLC Splitter

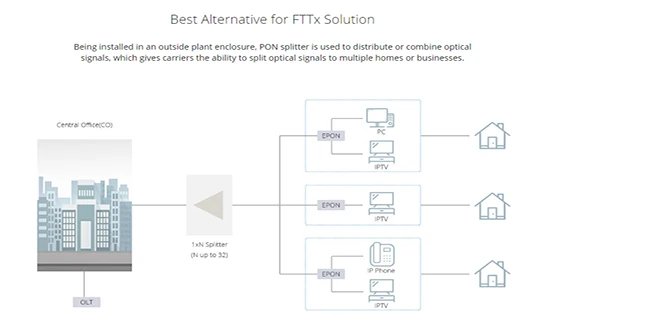

Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
